Degassing units

Degassing units for oil terminals are used to remove unwanted gasses from fuels in order to avoid error in measurement. Find out more on  how they work and discover ISOIL solutions.



The degassing process is a central step for any metering line in oil terminals.

In fact, in order to ensure accuracy in measurement, it is important to remove any air bubbles before the fluid enters the meter, thus preventing air from being measured.



Highlights:



Degassing Units

What is a degassing unit?

Degasification units are used to remove unwanted gasses from the liquid: ISOIL gas separators are specifically designed to ensure high efficiency by complying with OIML R117 recommendation.



Working principle

When entering the air separator, the fluid flows through a basket which is made of a filtering cartridge. In this way, foreign particles in the fluid are held by the strainer and dropped on the bottom so that they can  be removed through the lower drain plug. Furthermore, since the design and assembling of measuring instruments must guarantee a high-level metrological standard, the degassing unit has been designed to convey eventual air outside the gas separator through the use of a floating ball valve connected to a specific vent valve.



Discover how degassing units are used in helicopter refueling systems.



degassing system

In normal conditions, the level of liquid inside the strainer air separator makes the sphere of the air vent valve float. If air flows through the strainer air separator, gas moves to the upper part thus making the level of fluid decrease. The sphere is no longer supported by the fluid and when it goes down the air vent valve opens. In this way, the gas is discharged.

When the level of liquid starts rising again, the upward movement of the floating sphere closes the valve.



degassing unit working principle

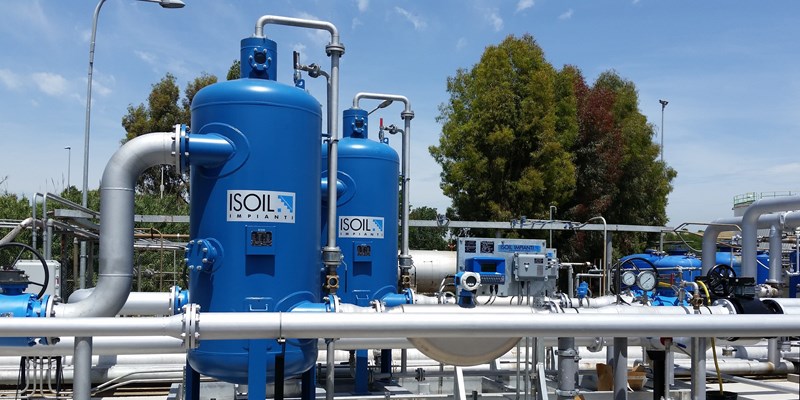

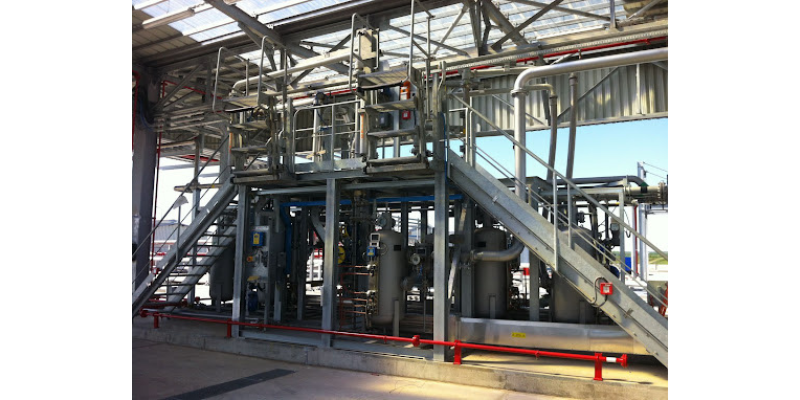

Degassing units for oil terminals

ISOIL series of degassing units are essential, as they prevent the meter from measuring air or gas in the liquid, a fact which would affect measurement accuracy. Moreover the union of both strainer and air separator in a single device allows a reduction in space for installation.



FDA and SFDA degassing unites

The FDA and SFDA series of strainer air separators performs the important task of protection against solid particles carried by the fluid and remove air or gas from the liquid. Putting together filtering and air elimination results in a more compact device, thus reducing the size of the group.



The choice of the filtering net must consider the characteristics of the liquid to be measured. We recommend 100 mesh for gasoline, 60 mesh for diesel, and 40 mesh for fuel oils.



DSH and DSV degassing units

The DSH and DSV series of strainer air separators are specifically designed to guarantee a high-level metrological standard. Therefore, the strainer conveys eventual air into the gas-separator: the more air in the system, the more the floating-sphere sinks, thus opening the air vent valve.



The opening of the air-separator activates a micro-switch. This in turn closes the automatic valve stopping product delivery. When all the air has been vented out, the rising level of fluid makes the sphere rise up again and the mechanism closes the air-strainer. Such movement activates the micro-switch again which opens the automatic valve allowing for product delivery.

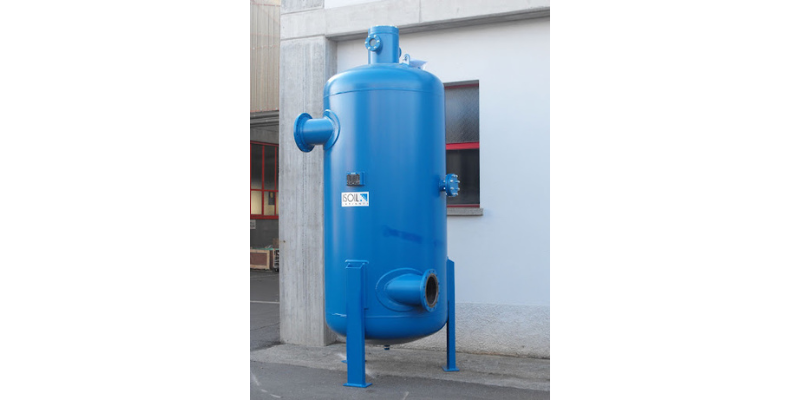

DV centrifugal degassing units

ISOIL DV centrifugal air separators perform the same function of the FDA series, i.e. filtering and air elimination, but they exploit rotary motion to do so. Inlet and outlet are in fact placed tangentially to the centrifugal gas separator, so that the fluid is set into motion. This motion together with the long lasting residence time of the liquid inside the equipment allows for efficient separation of air/gas from the fluid while foreign particles are dropped on the bottom where they can be drained by using a bottom plug.



Different solutions are available, depending on flange diameter and plant requirements.



Here is an overview of our products



1” 1/2 Flange

FDS 32 Degassing Unit

Compact manual strainer ideal for low-flow pipelines requiring gas separation and particle filtration.

Download Technical Manual





2” Flange

FA75/1 Degassing Unit

Manual strainer designed for reliable performance in mid-range pipeline systems.

Download Technical Manual





FDX75 Degassing Unit

High-efficiency 2" manual strainer for removing solid and gas impurities.

Download Technical Manual





3” Flange

FDS 150 Degassing Unit

Manual unit suitable for 3” pipelines, ensures clean flow and degassing.

Download Technical Manual





FA 200 Degassing Unit

Robust 3” manual strainer engineered for industrial filtration tasks.

Download Technical Manual

Download Technical Sheet





SFA 200 Degassing Unit

Enhanced version with superior filtration capacity and manual operation.

Download Technical Manual





SFDA 200 Degassing Unit

Combination unit providing both straining and gas separation functionalities.

Download Technical Manual





FDA 200 Degassing Unit

Versatile 3” degassing unit, ideal for continuous liquid flow systems.

Download Technical Manual

Download Technical Sheet





DSH 80-01 Degassing Unit

Manual 3” degassing separator tailored for specialized gas removal needs.

Download Technical Sheet

Download Technical Sheet





4” Flange

Strainer FA 400 Degassing Unit

Heavy-duty 4” strainer offering precise manual control and efficiency.

Download Technical Manual

Download Technical Sheet





Strainer SFA 400 Degassing Unit

Reliable performance for industrial setups requiring consistent filtration.

Download Technical Manual

Download Technical Sheet





SFDA 400 Degassing Unit

Dual-function unit ideal for high-capacity 4” systems.

Download Technical Manual





FDA 400 Degassing Unit

Designed to remove both gases and solid particles in large pipelines.

Download Technical Manual

Download Technical Sheet





DSH 100-01 Degassing Unit

Specialized separator for 4” pipelines, manually operated.

Download Technical Manual

Download Technical Sheet





6” Flange

FA 600 Degassing Unit

Manual strainer built for durability in high-flow 6” pipelines.

Download Technical Manual

Download Technical Sheet





SFA 600 Degassing Unit

Advanced manual unit ensuring continuous filtration and degassing.

Download Technical Manual





SFDA 600 Degassing Unit

6” unit for simultaneous removal of gases and debris.

Download Technical Manual





FDA 600 Degassing Unit

Engineered for high-volume, 6” flow lines with degassing needs.

Download Technical Manual

Download Technical Sheet





DSH 150-01 Degassing Unit

Manual degassing solution suited for demanding industrial environments.

Download Technical Manual

Download Technical Sheet





8” Flange

FA 1000 Degassing Unit

Large-format manual strainer for 8” pipelines; perfect for critical applications.

Download Technical Manual

Download Technical Sheet





FDA 1000 Degassing Unit

Efficient solution combining filtration and gas separation.

Download Technical Manual

Download Technical Sheet





10” Flange

Strainer FA 3000 Degassing Unit

Robust strainer designed for large-scale flow management.

Download Technical Manual

Download Technical Sheet





FDA 3000 Degassing Unit

High-capacity degassing unit for extended industrial operations.

Download Technical Manual

Download Technical Sheet





From 3” to 16”

DV Centrifugal Gas Separator

Manual centrifugal gas separator suitable for a wide range of pipeline sizes, from 3” to 16”.

Download Technical Manual

Download Technical Sheet





From 2” to 6”

Stainless Steel or Carbon Steel Y Degassing Units

Manual Y-type strainers available in stainless or carbon steel for sizes 2” to 6”, suitable for standard liquid filtration.

Download Technical Manual
